Friction Washer Plastic Recycling Washing Machine
Function:
This device is generally used after crushing machine but before washing tank. It can make great washing performance through mechanical friction and continous water flushing. Meanwhile, oil stains, glue, silt and other impurities that are adhered to then surface of materials can be removed even without a washing tank. Also it helps greatly to keep the water in washing tank clean. Both soft and rigid materials are applicable.
Key Features:
1.Using an main shaft with eccentric design results in better washing performance.
2.The bottom is equipped with a water collection basin, which can effectively collect waste water.
3.There are inspection access at the top for convenient maintainances.
4.The parts in contact with water are all made of SUS304 stainless steel.
5.The vanes are all detachable and easy to install and remove.
Equipment Specification:
| ITEM | UNIT |
| RMCB-6040 |
|
| Rotor diameter | mm |
|
|
|
| Rotor width | mm |
|
|
|
| Motor Power | kW/HP |
| 22/30 |
|
| Machine Length | mm |
| 4000 |
|
| Machine Barrel Diameter | mm |
| 600 |
|
| Machine Height | mm |
| 3600 |
|
| Dehydrating Rate | % |
| 98.5% |
|
| Process Capacity | KG/H |
| ≤3000 |
|

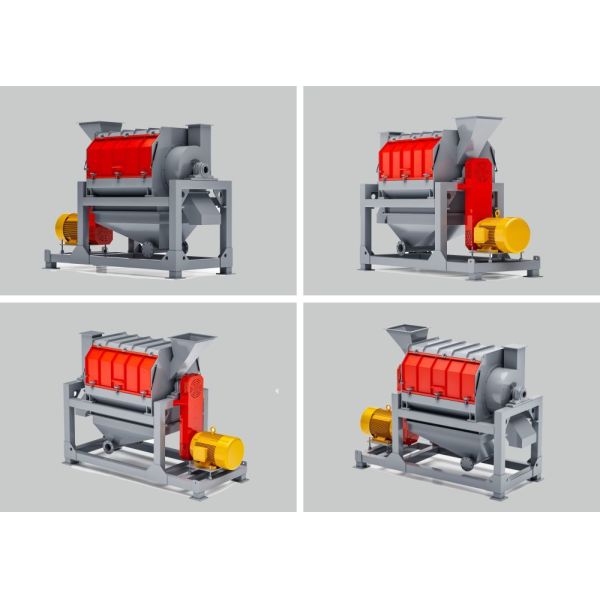

Physical Pictures:
Applications:
Both normal rigid plastic flakes and soft films,
PET bottle and HDPE daily household waste container flakes,
LDPE films,
PP woven bag and PP raffia materials,
ABS PS flakes.
